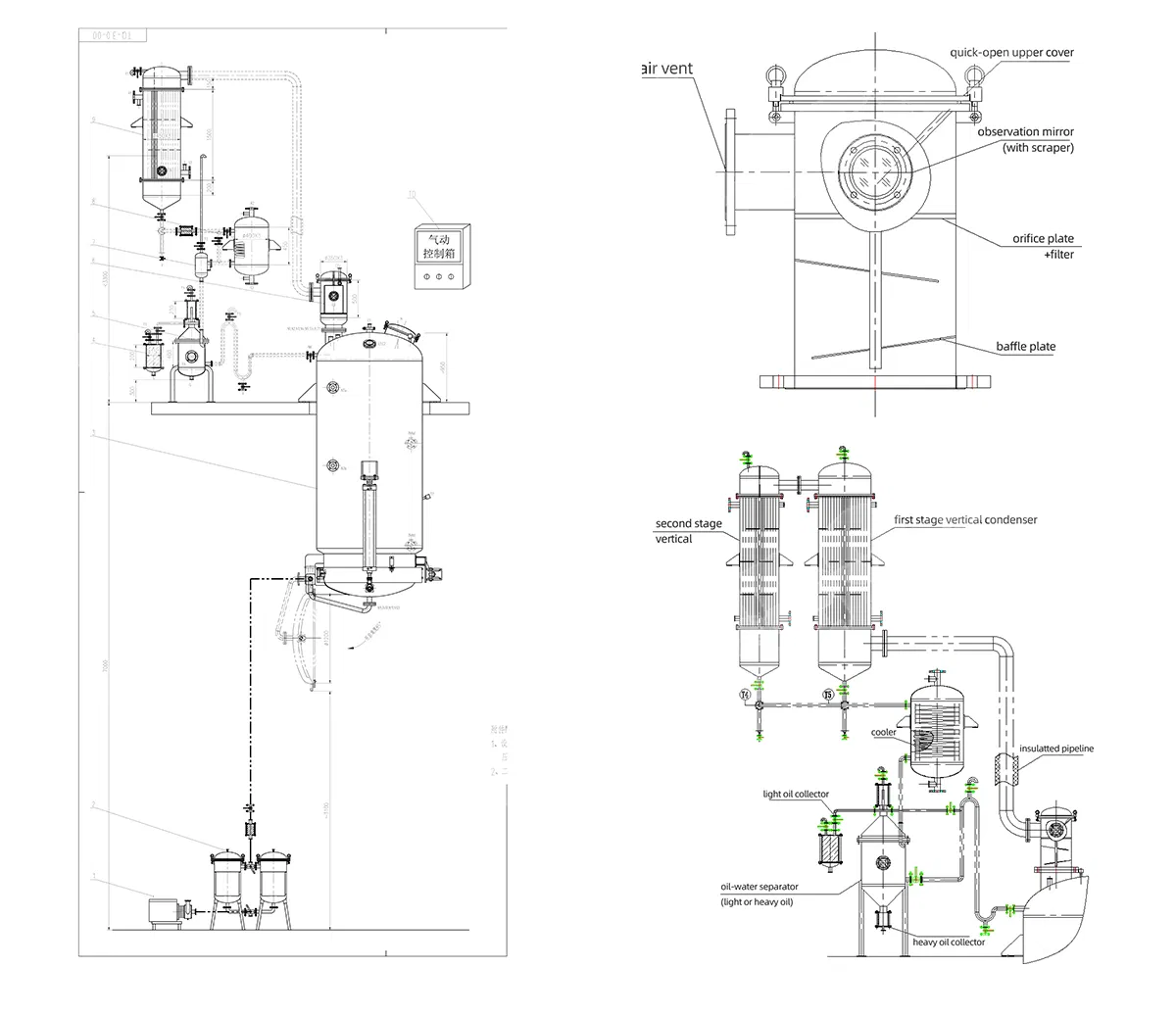

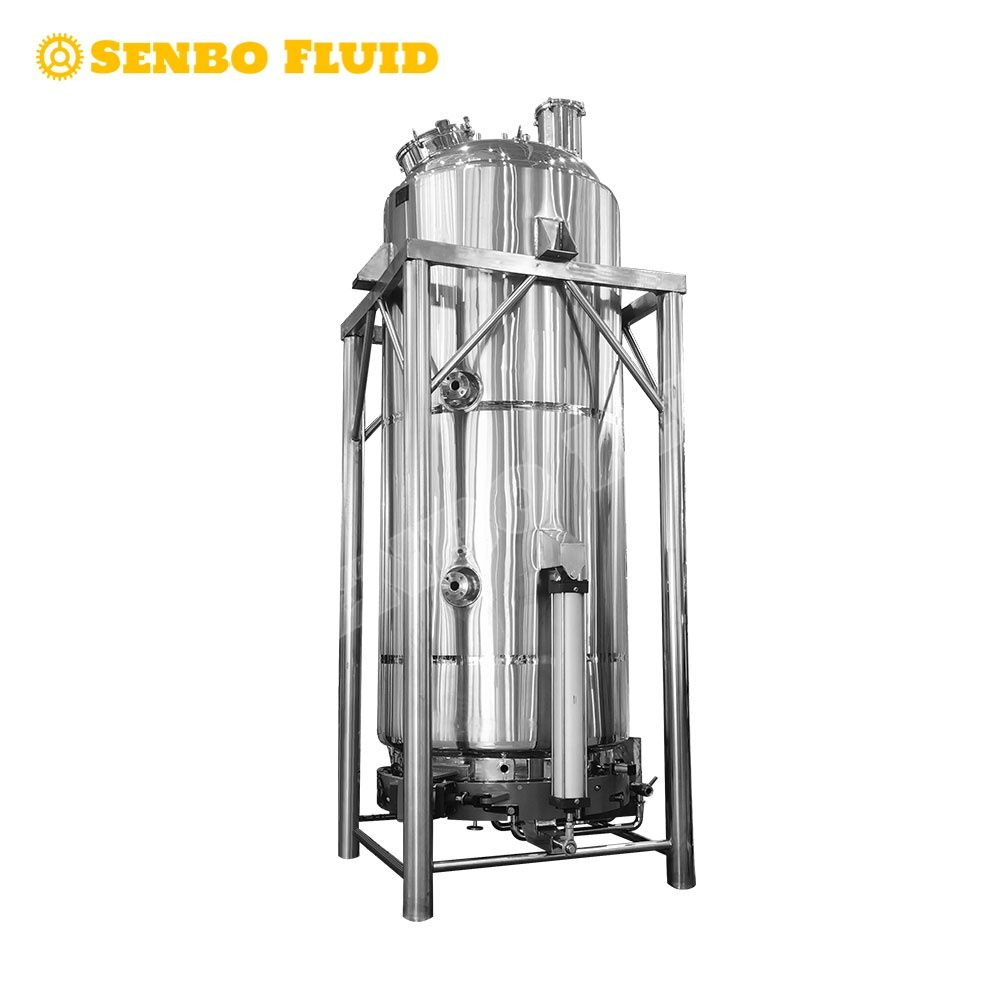

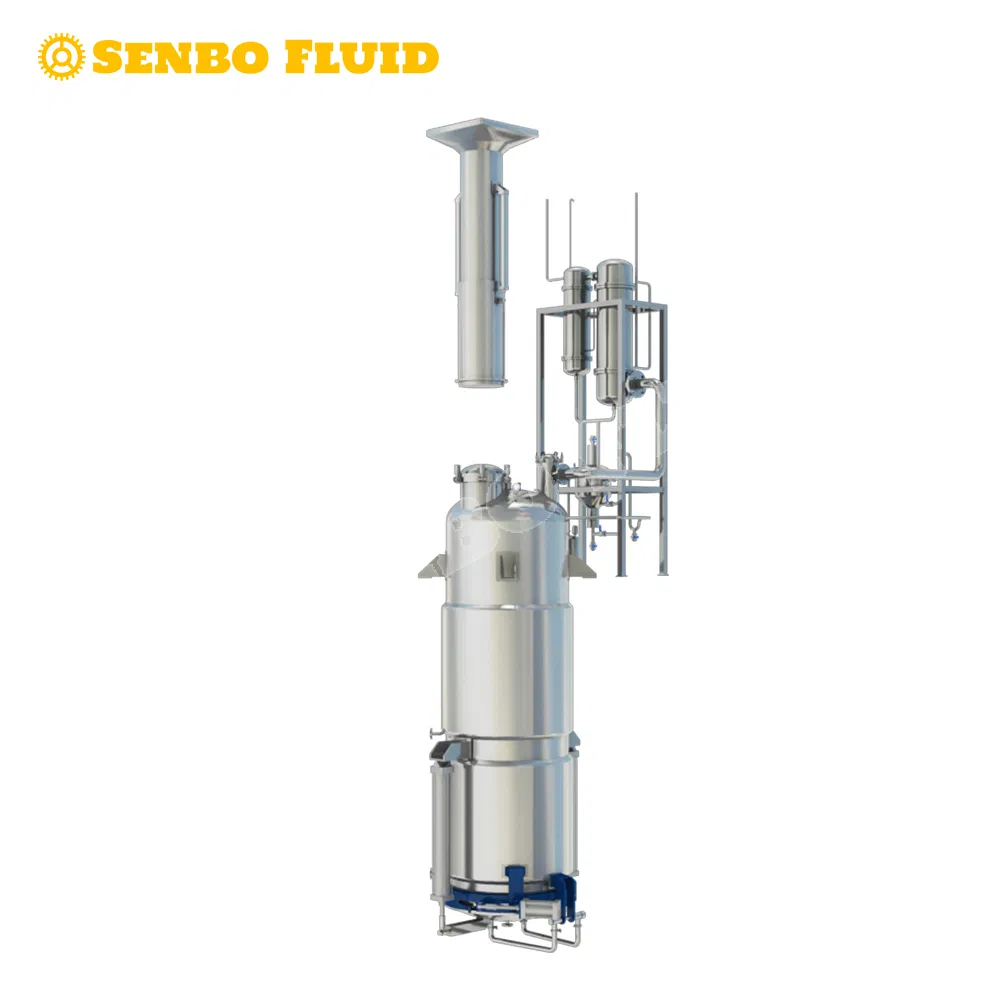

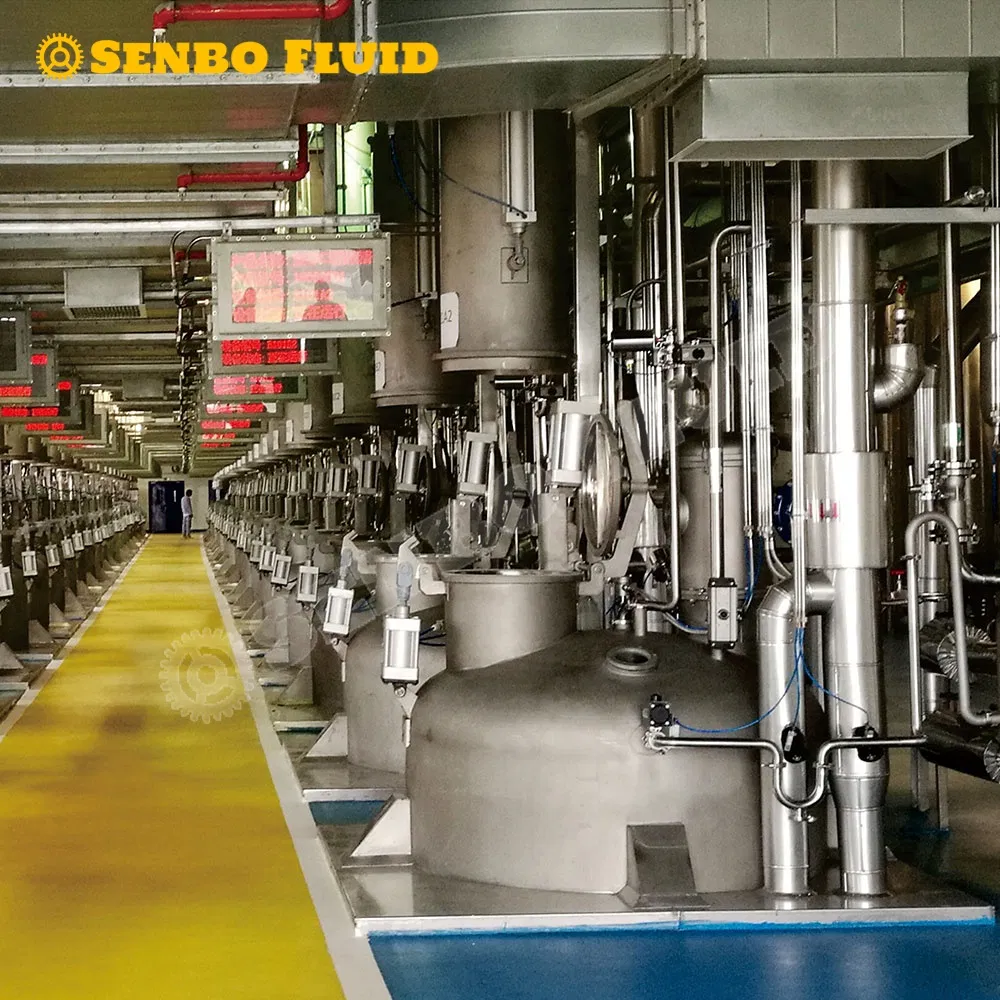

Working Principle of Extraction Tank: The extraction tank is used to extract active components from raw materials by hot water or organic solvent circulation under controlled temperature and pressure. Raw materials are loaded into the tank, and solvent is added for soaking, heating, and circulation. The extracted solution is then discharged to downstream filtration and concentration equipment.
| plant extract | green tea extract | kava extract |
| extract | licorice extract | perfume extract |
| dandelion extract | tongkat ali extract | saw palmetto extract |
| herbal extract | fruit extract | mushroom extract |
| animal extract | epimedium extract | tangerine peel extract |
| monk fruitextract | black walnut wormwood clove extract | ginkgo biloba extract |
| mullein leaf extract | Vanila extract | tabernaemontana divaricata extract |
| yeast extract | ashwagandha extract | korean red ginseng extract |
| saffron extract | cocoa butter extraction machine | reishi mushroom extract |
| Model | TQ-Z-1.0 | TQ-Z-2.0 | TQ-Z-3.0 | TQ-Z-6.0 | TQ-Z-8.0 | TQ-Z-10 |
|---|---|---|---|---|---|---|
| Volume(L) | 1200 | 2300 | 3300 | 6300 | 8600 | 11000 |
| Jacket design pressure (MPa) | 0.33 | |||||
| Stirring Type | Anchor / Paddle / Customized | |||||
| Heating Method | Steam / Electric | |||||
| Material | SS304 / SS316L | |||||
| Jacket design temperature (°C) | 146 | |||||
| Compressed air pressure (MPa) | 0.6-0.7 | |||||
| Manhole diameter (mm) | 400 | 400 | 400 | 500 | 500 | 500 |
| Condenser area (m²) | 3 | 4 | 6.5 | 9.5 | 12.5 | 15 |
| Cooling area (m²) | 0.5 | 1 | 1.2 | 2 | 2.5 | 3 |
| Filtration area (m²) | 0.2 | 0.2 | 0.25 | 0.3 | 0.4 | 0.5 |
| Steam consumption (kg/h) | 245 | 305 | 345 | 645 | 720 | 850 |
| Total weight (kg) | 1080 | 1620 | 2400 | 3025 | 4030 | 6500 |
The extraction tank extracts active components from raw materials by circulating hot water or organic solvents under controlled temperature and pressure conditions. Once completed, the solution is discharged downstream for filtration and concentration.
The machine supports hot water extraction, alcohol/solvent extraction, reflux extraction, and dynamic circulation extraction processes, allowing versatile production methods.
It is widely used for processing plant extracts, green tea, kava, dandelion, herbal and fruit extracts, mushroom, vanilla, ashwagandha, and saffron extracts, among others.

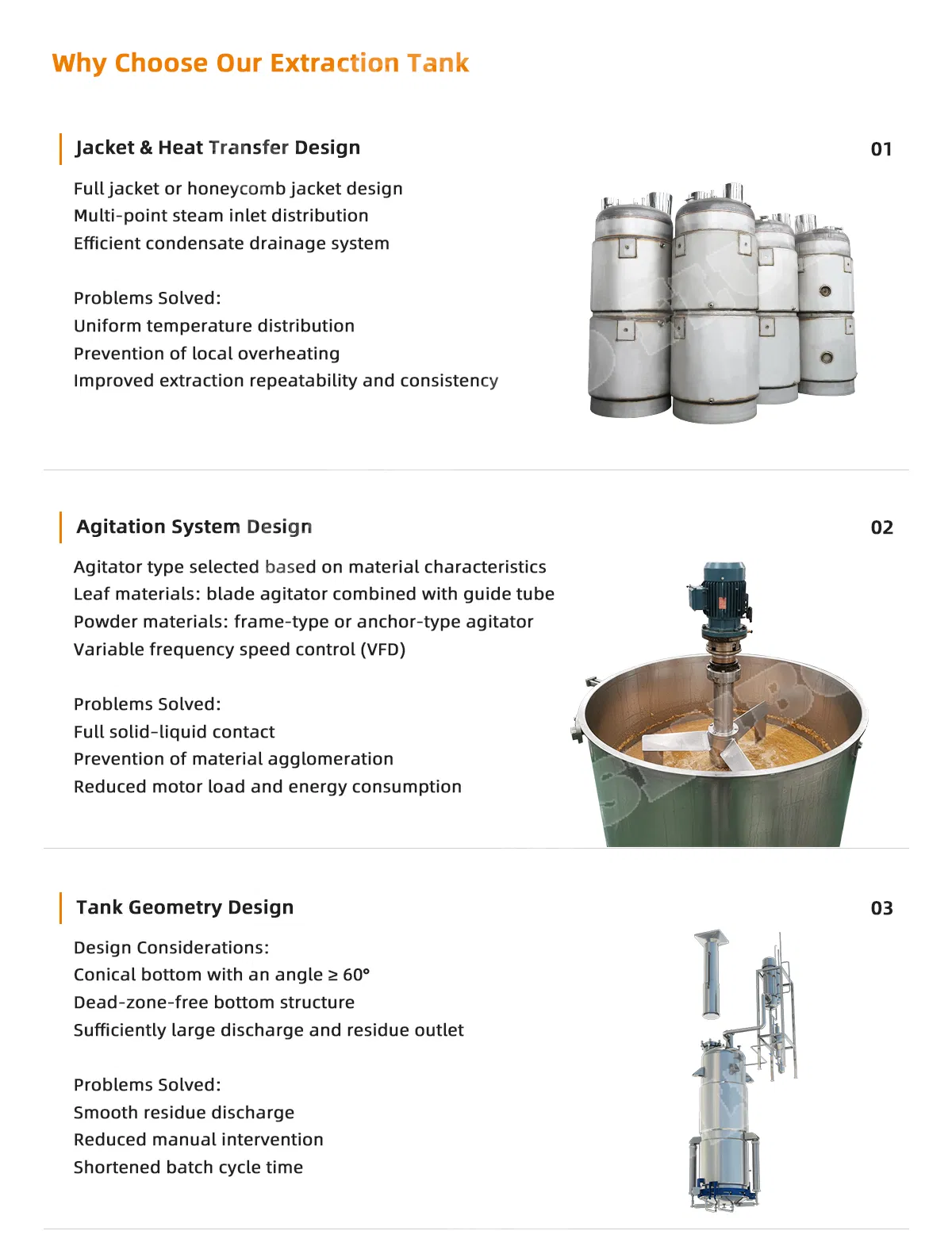

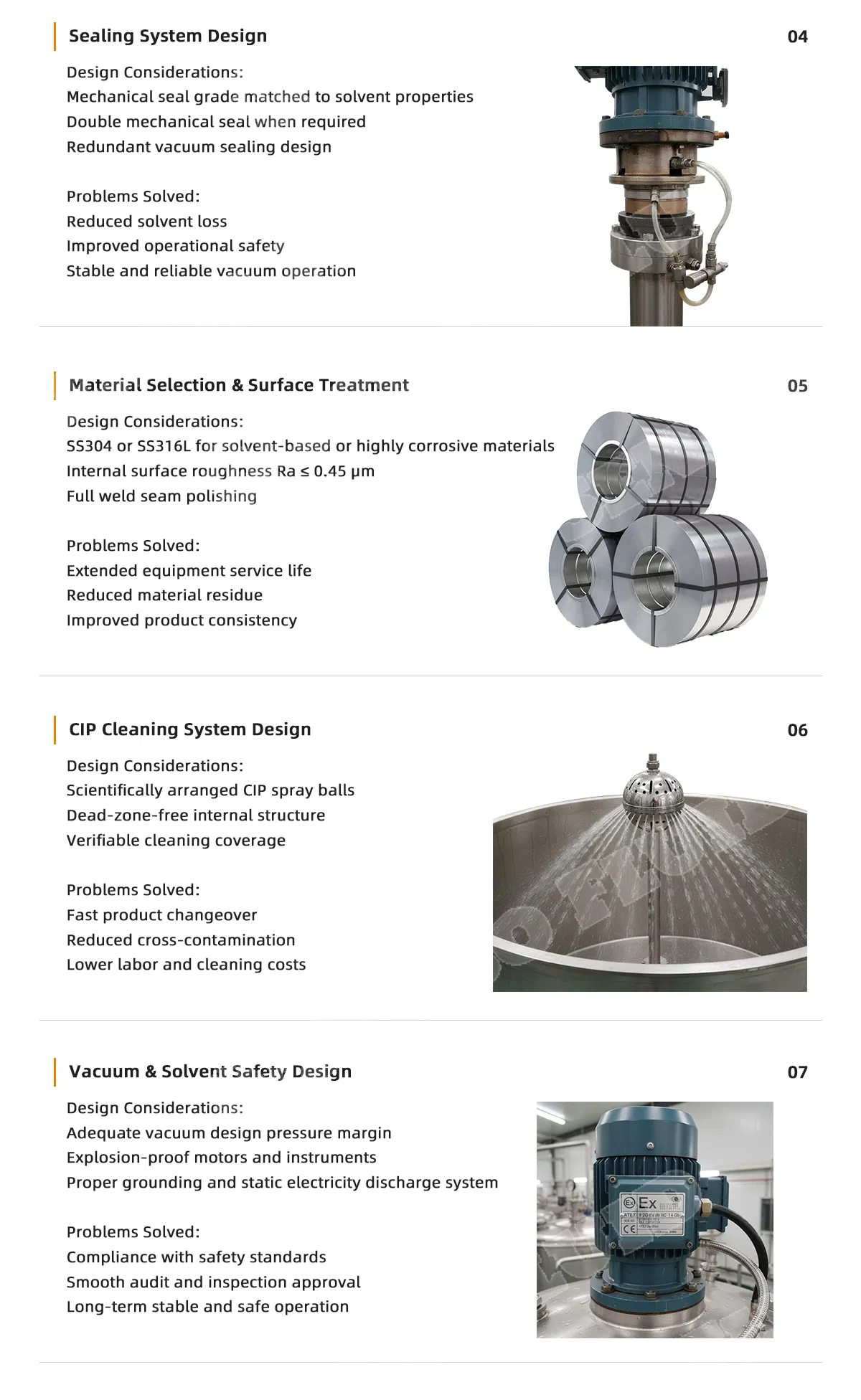

The machine is constructed using high-grade SS304 or SS316L stainless steel. Stirring types (Anchor / Paddle / Customized), pressure controls, and temperature controls can be customized to match your specific processing requirements.
This essential oil extraction equipment is built to meet high-precision industry standards and holds CE and GMP certifications, ensuring safety, hygiene, and compliance.
The equipment is packed in export-standard wooden cases with steel frames to withstand sea and land transportation. Shipments are available under EXW, FOB, and CIF delivery terms.
