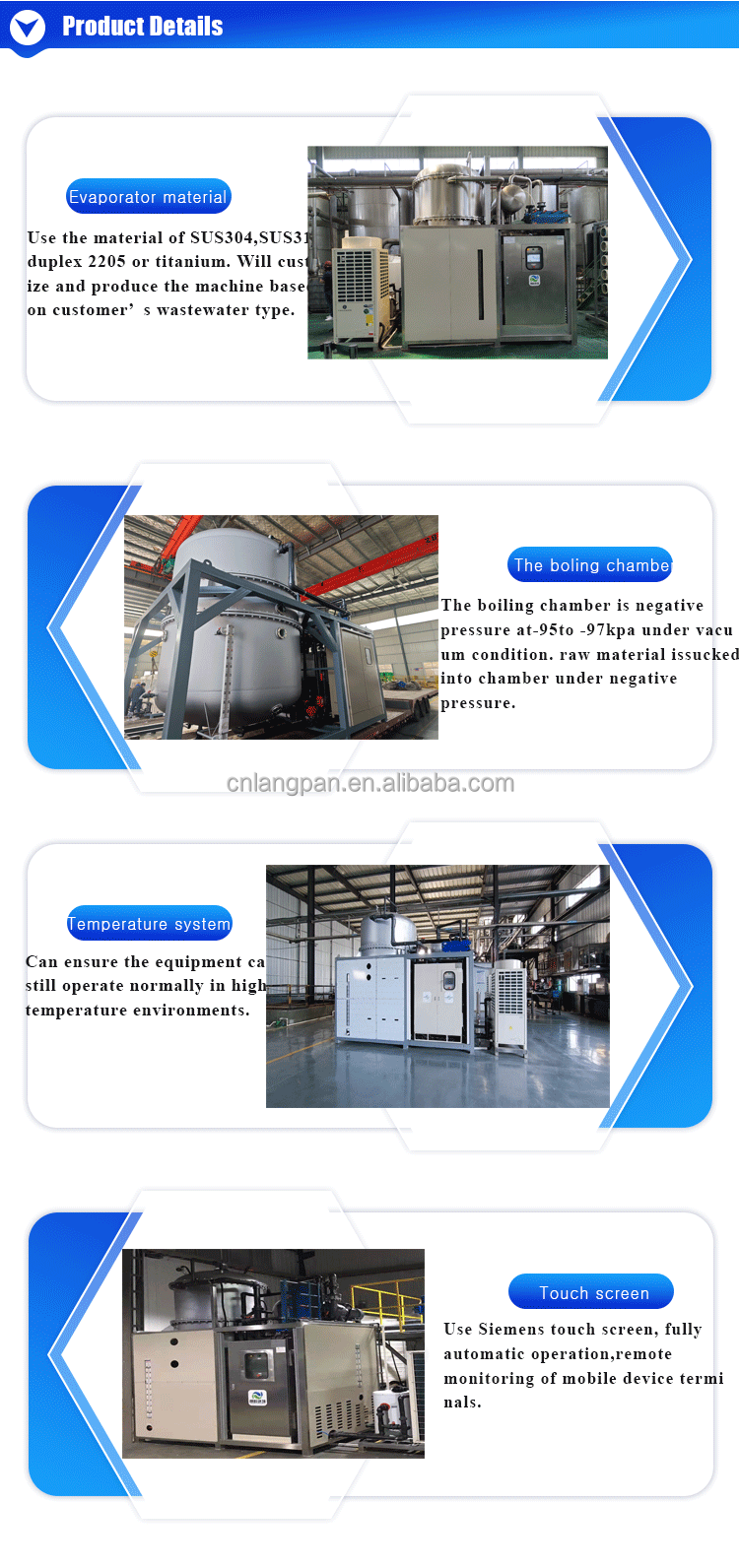

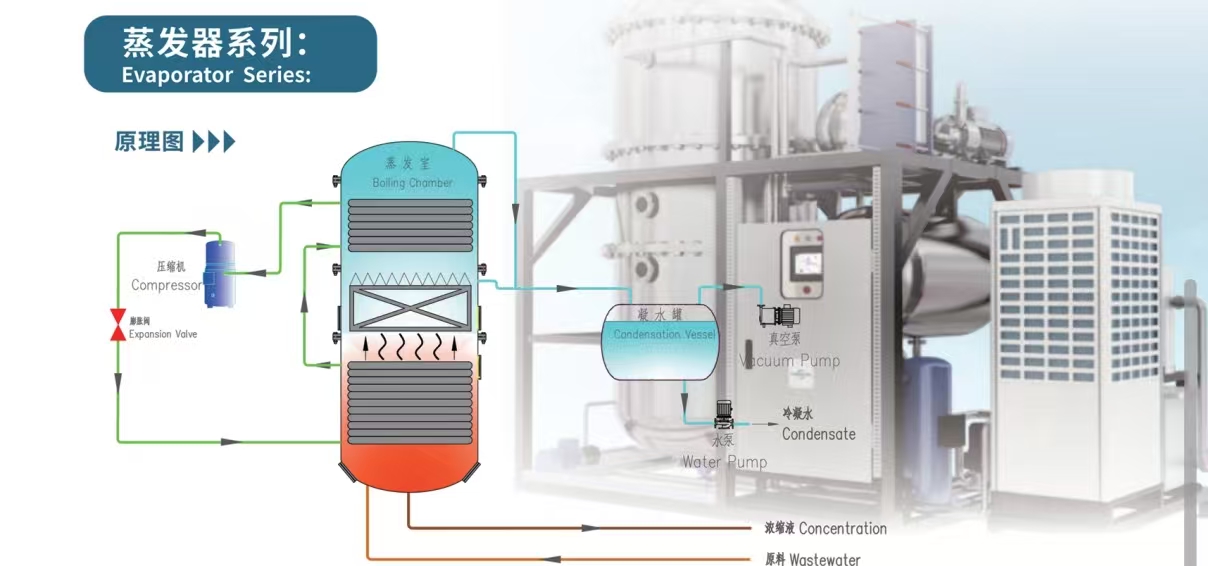

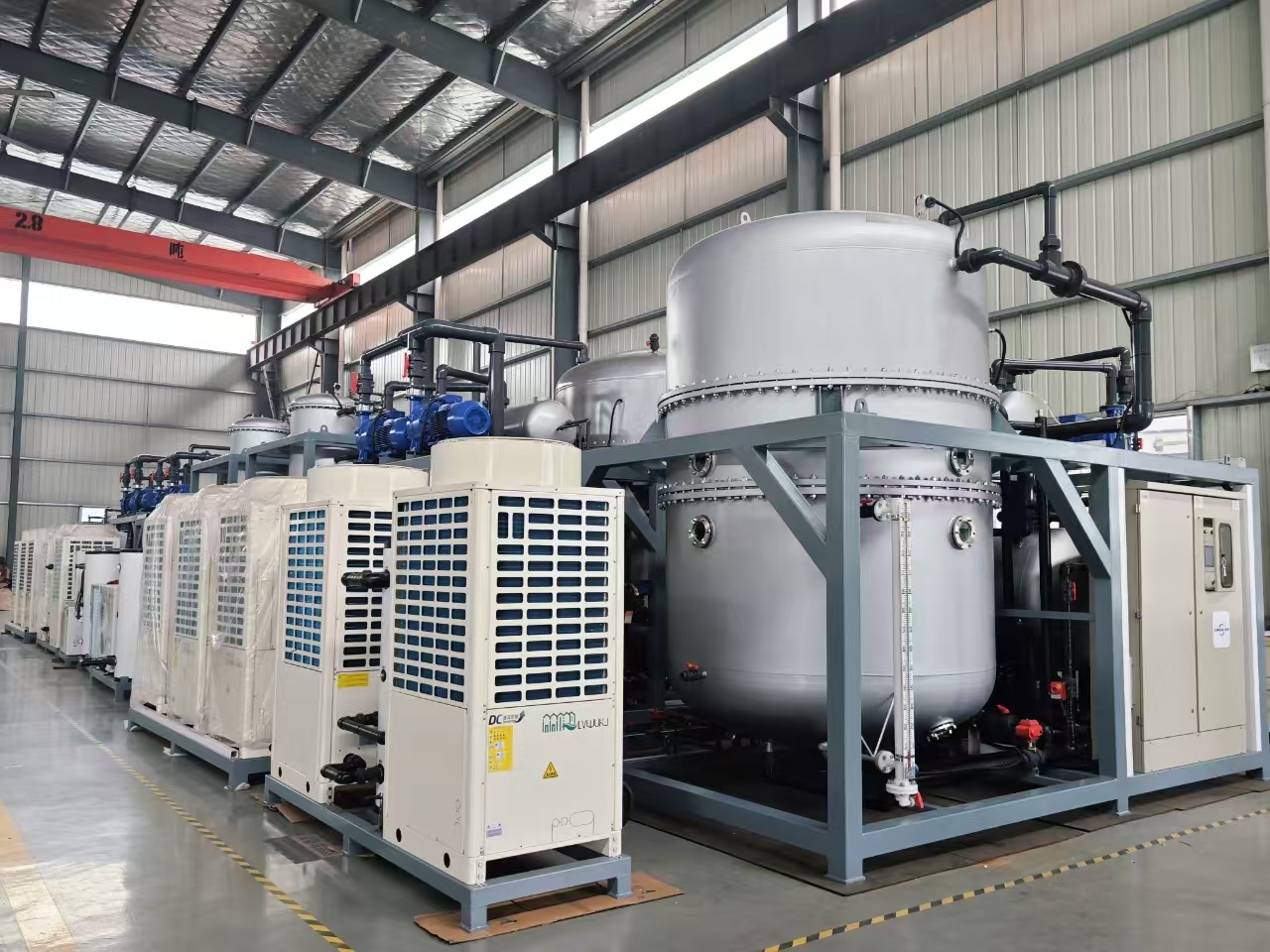

The boiling chamber is negative pressure at -95 to -97kPa under vacuum condition, raw material is automatically sucked into chamber under negative pressure. Meanwhile, the heat pump system will makes heat exchange device into evaporation and condensation two parts. Circulation system sprays raw wastewater onto the evaporation part nebulized, water become steam after evaporation and rise to condensing become condensate. The condensate flows to condensation vessel and the concentration remains in boiling chamber, both of them will discharge automatically when reach pre-setted rate.
| Model | Evaporative Power (L/h) | Installed Power (kW) | Consumption (W/L) | Dimension (LxBxH m) |
|---|---|---|---|---|
| V-HP1000 | 45 | 14.5 | 100-130 | 2.0x0.9x2.8 |
| V-HP2500 | 110 | 32 | 80-100 | 2.3x1.2x3.0 |
| V-HP5000 | 216 | 50 | 80-100 | 2.5x1.6x3.2 |
| V-HP8000 | 336 | 77.3 | 60-100 | 2.8x1.8x3.4 |
| V-HP10000 | 440 | 105.7 | 60-100 | 3.0x2.0x3.6 |
| V-HP20000 | 870 | 205 | 60-100 | 4.5x3.2x3.8 |
| V-HP25000 | 1050 | 150 | 60-100 | 7.0x3.2x3.8 |
| V-HP30000 | 1250 | 180 | 60-100 | 7.0x3.2x4.0 |
| V-HP35000 | 1450 | 195 | 60-100 | 7.0x3.2x4.0 |
| V-HP40000 | 1660 | 210 | 60-100 | 7.0x3.5x4.6 |
| V-HP50000 | 2080 | 250 | 60-100 | 8.2x3.65x4.6 |
| V-HP60000 | 2500 | 280 | 60-100 | 8.2x3.65x4.6 |

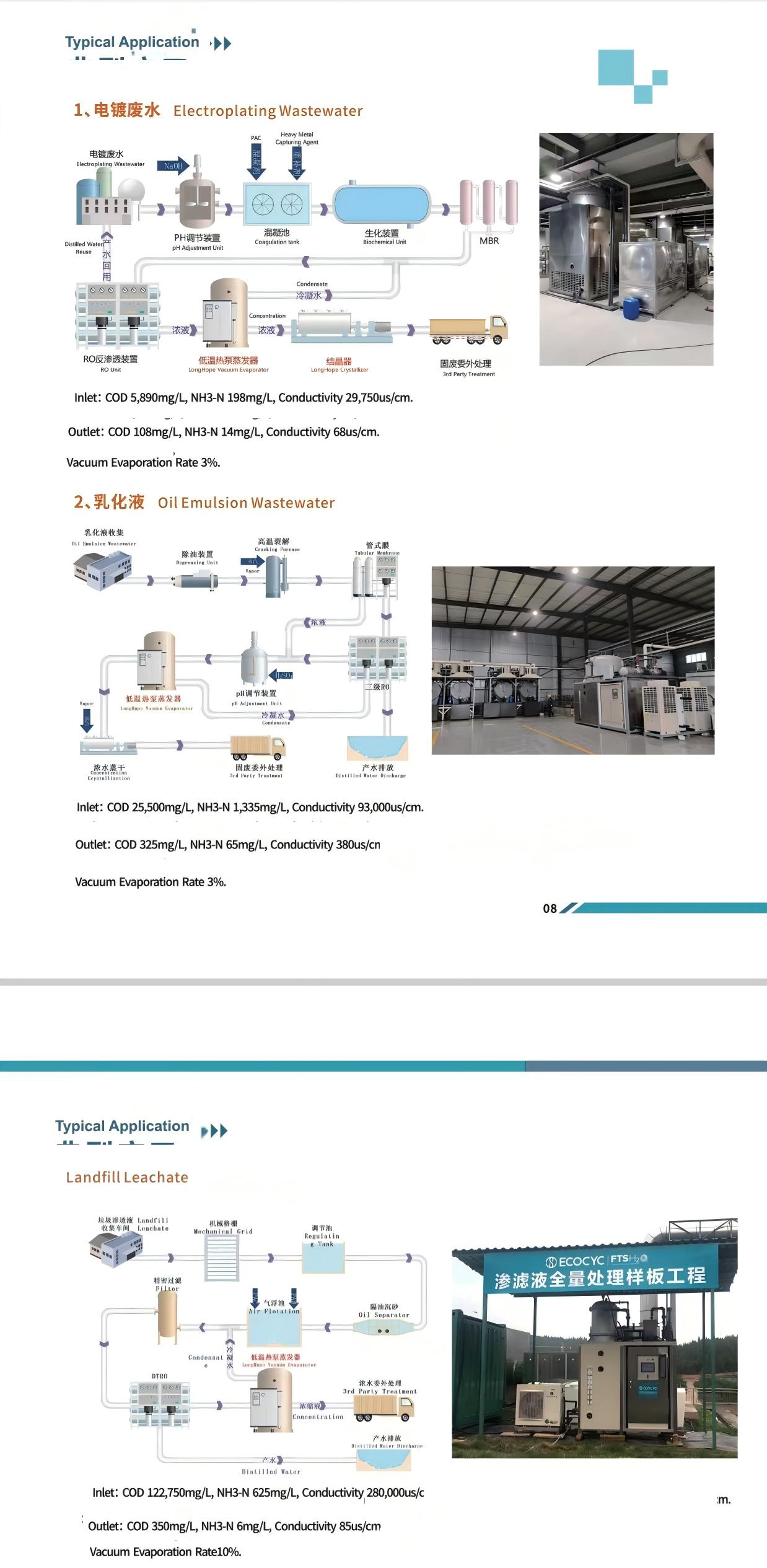

Inlet: COD 5,890mg/L, NH3-N 198mg/L, Conductivity 29,750us/cm.
Outlet: COD 108mg/L, NH3-N 14mg/L, Conductivity 68us/cm.
Vacuum Evaporation Rate: 3%.
Inlet: COD 25,500mg/L, NH3-N 1,335mg/L, Conductivity 93,000us/cm.
Outlet: COD 325mg/L, NH3-N 65mg/L, Conductivity 380us/cm.
Vacuum Evaporation Rate: 3%.

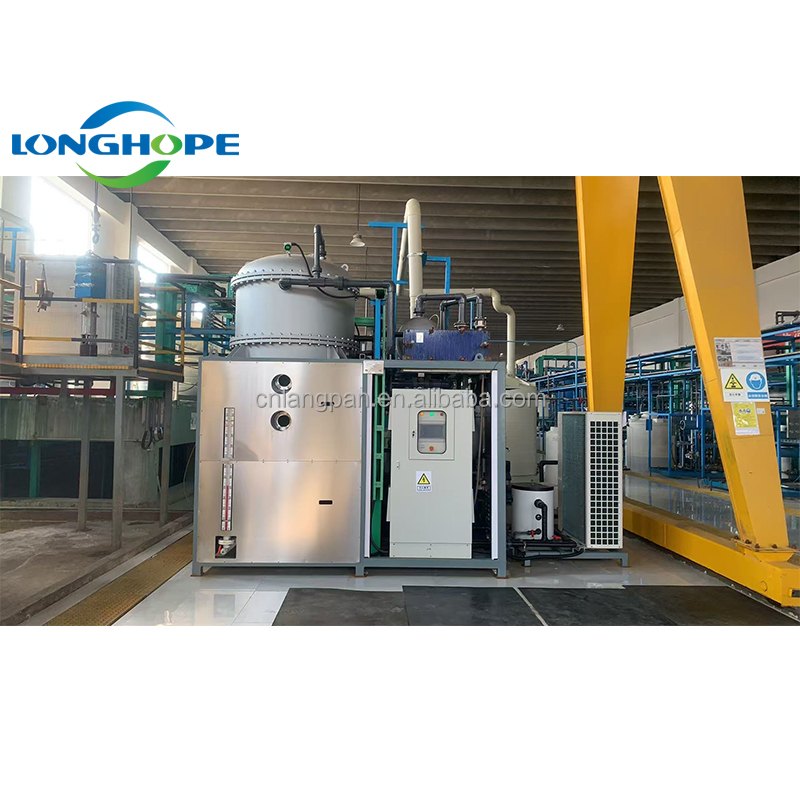

Inlet: COD 122,750mg/L, NH3-N 625mg/L, Conductivity 280,000us/cm.
Outlet: COD 350mg/L, NH3-N 6mg/L, Conductivity 85us/cm.
Vacuum Evaporation Rate: 10%.
A: We are factory.
A: Generally it is 45 days if the goods are in stock, or it is 60 days if the goods are not in stock, it is according to quantity.
A: One year quality assurance. We will provide you free spare parts during the guarantee year. Our engineer can also provide the technical guide and after-sales service.
A: 30% advanced payment and balance payment when the machine is finished. We will show you testing video or spot test before delivery.

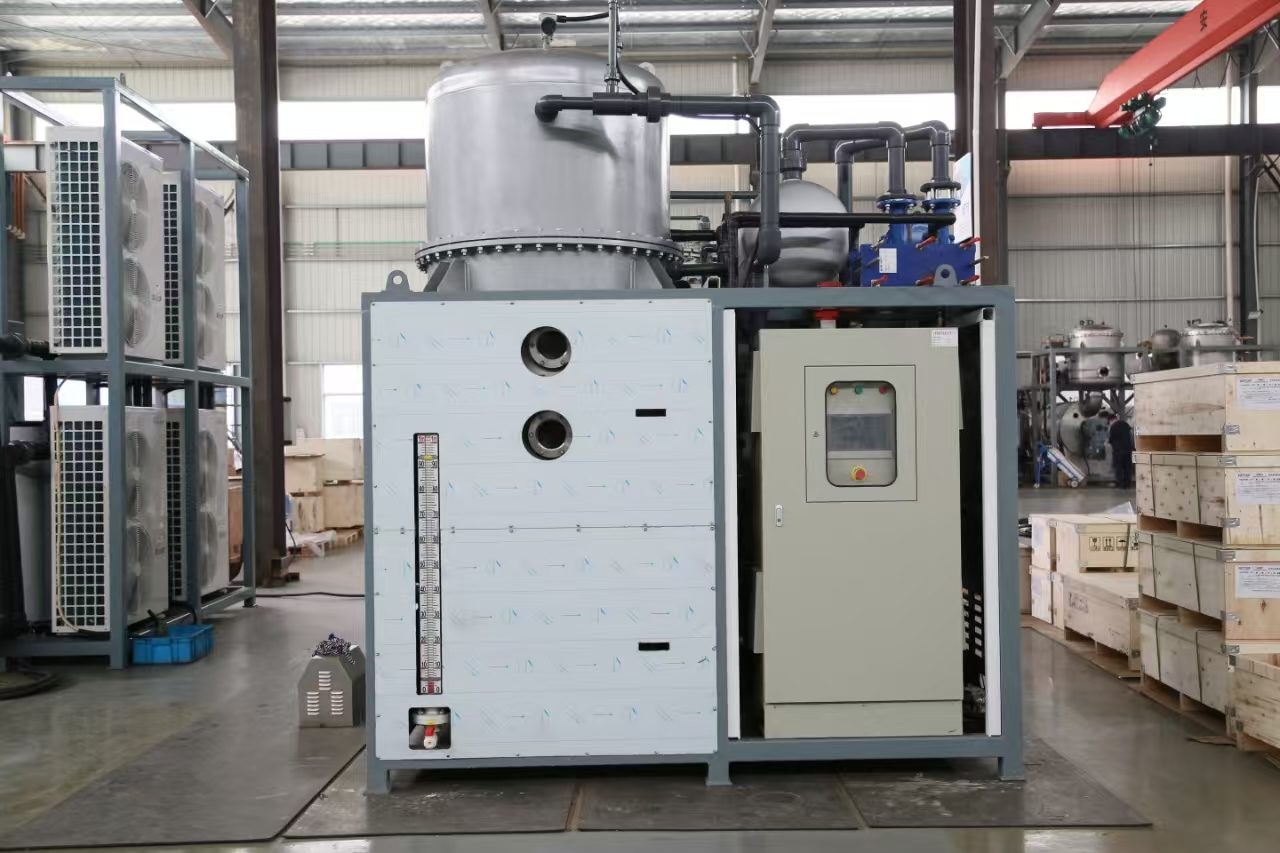

A: Typical applications include Electroplating Wastewater treatment, Oil Emulsion Wastewater, Landfill Leachate processing, and various other industrial wastewater concentrations.
A: The boiling chamber operates under negative pressure conditions at -95 to -97kPa, ensuring optimal vacuum evaporation efficiency.
